I DFM-1 Series Air Damper for Temperature Control
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
Product description
Parameters
I DFM-1 Series Air Damper for Temperature Control
DFM-1 series air damper, a capsule reed mechanical electric air damper, features simple structure, accurate action and great reliability. It’s a control component used on forced air cooling frost-free refrigerators.

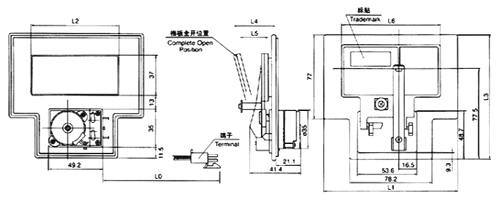

II External Dimensions Drawing
| Item/Improvement Number | H | R | F |
| L1 | 122 | 102 | 122 |
| L2 | 80 | 60 | 90 |
| L3 | 114.5 | 114.5 | 93 |
| L4 | 29.8 | 27.8 | 27 |
| L5 | 14 | 11 | 15 |
| L6 | 90 | 70 | 98 |
| L0 | 600 | 500 | 340 |
III Main Technical Specifications
IV Circuit Type
| Rated Voltage | Frequency | Input Current | Input Power | Reed Switch Rating | Design No. |
| AC100V | 50/60Hz | <15mA | <1.5W | Max DC12V 5mA | |
| AC220V | 50/60Hz | <12mA | <1.5W | Max DC12V 5mA | I |
V Operation Cycle(50/60Hz)
VI Products of special specifications can be custom made upon request.
