I XSB-1 Water Pump
XSB-1 series compact sized water pump is used to supply water to ice making mechanism in the refrigerator. It features compact structure, stable flow rate and great reliability. It’s a necessary component for refrigerators with the ice making mechanism.

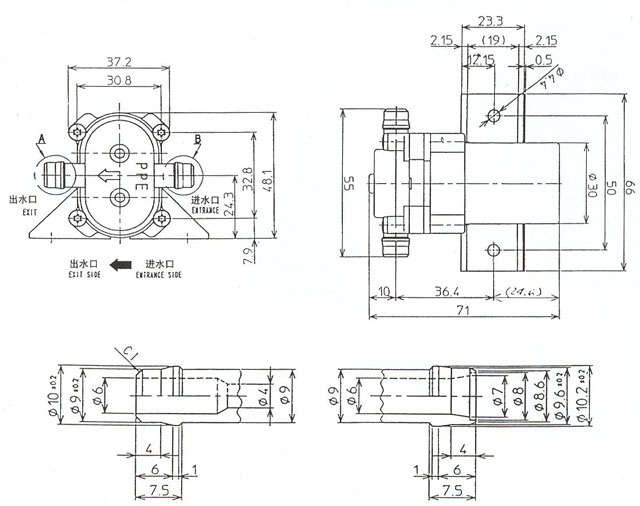

II External Dimensions Drawing
III Main Technical Specifications
Votage rating: DC8-13V Liquid Type: purified water
Flow rate: 1.31±0.20L/min Pump head: >500mm
Self-suction Height: >150mm during forward rotation (under dry condition that no water is in the pump)
>400mm during reverse rotation (under the condition that residual water is in the pump)
Input Current: no load: <150mA rated load: <250mA
stalling: <700mA
Noise: 35db(A)

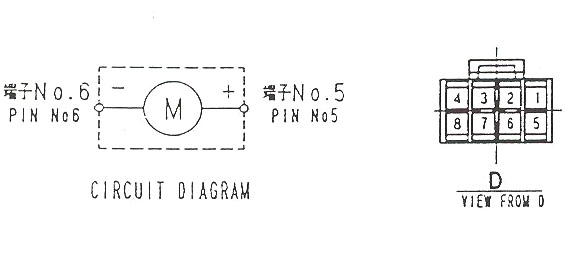

IV Circuit Type
| Terminal |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
Nickel color |
- |
- |
- |
- |
红 |
黑 |
- |
- |
V Products of special specifications can be custom made upon request.
