I CKQ Series Programmable Logic Controller (PLC)

　　I CKQ Series Programmable Logic Controller (PLC)

　　CKQ series programmable logic controller (PLC) was developed based on EATON’s flat type PLC, It is used for programmable control of front load washing machines. CKQ series PLC features slow-wheel 17 groups of switches and quick-wheel 4 groups of switches. Based on different fabric, 60 programs can be preset with it, such as automatic water fill, heating, washing in forward and reverse rotation, draining, spinning, stop, etc. CKQ series PLC features compact size and great reliability., It’s a necessary component of front load washing machines. CKQ-1 series PLC can be used to replace EATON’s ERS9313 series PLC.

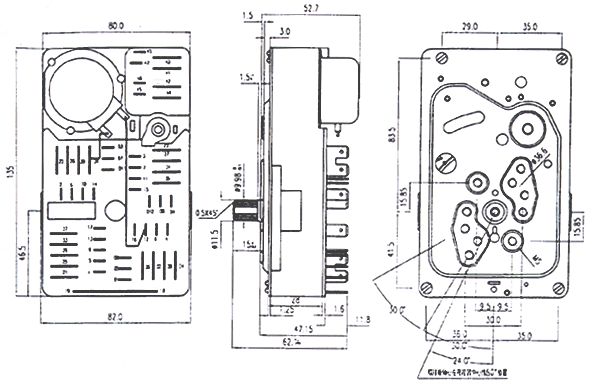

　　II External Dimensions Drawing

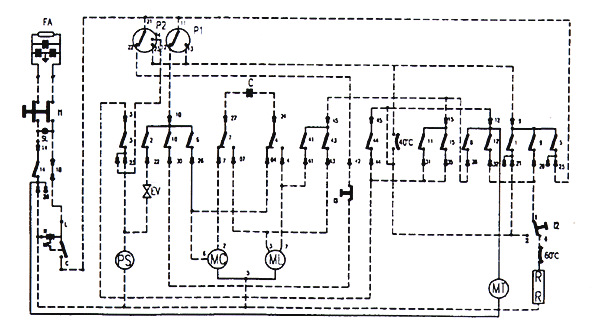

　　IV Circuit Type

　　V We can custom design and manufacture the PLC upon special requests form the customer (such as preset program, quantity of quick-wheel and slow-wheel switch contacts, duration of each program, etc.)
